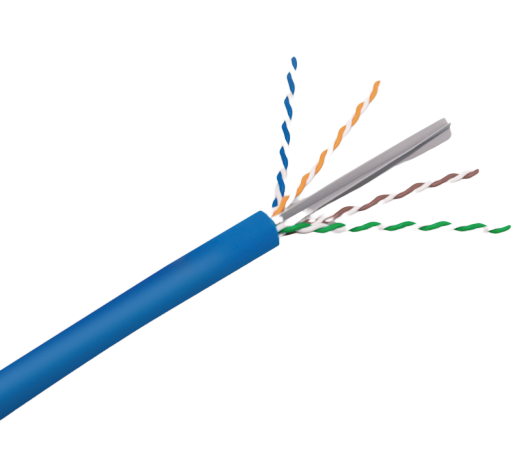

Category 6A 650MHz U/UTP Solid Cable

Category 6A 650MHz U/UTP Solid Cable

Product Feature

Product Description

Application

Category:

Description

Cable Data

TYPEPRODUCT NO.AWGFLAMEDIAMETERPACKAGING
RETARDANT(mm/inch)Put-Up
RATING
SolidTUP2304S23AWGCMP8.1+-0.2mm1,000 ft
TUR2304S23AWGCMR8.3+-0.2mm1,000 ft
TUM2304S23AWGCM8.3+-0.2mm1,000 ft
TUX2304S23AWGCMX8.3+-0.2 mm1,000 ft
TUL2304S23AWGLSZH/FRLSZH8.3+-0.2 mm1,000 ft
TUP2304SS23AWGCMP6.9+-0.2 mm1,000 ft
TUR2304SS23AWGCMR7.5+-0.2 mm1,000 ft
TUM2304SS23AWGCM7.5+-0.2 mm1,000 ft
TUL2304SS23AWGLSZH7.5+-0.2 mm1,000 ft


Reference Electrical Characteristics

FrequencyILNEXTPS.NEXTACRPS.ACRACRFPS.ACRFRLPropagation DelayDelay SkewPS.ANEXTPS.AACRF
(MHz)(Max.)(Min.)(Min.)(Min.)(Min.)(Min.)(Min.)(Min.)(Max.)(Max.)(Min.)(Min.)
 dB/100mdb/100mdb/100mdb/100mdb/100mdb/100mdb/100mdb/100mns/100mns/100mdb/100mdb/100m
10019.1444.3042.3025.1723.1727.8024.8020.11537.6045.0062.5038.20
25031.0738.3336.337.265.2619.8416.8417.32536.2845.0056.5330.24
50045.2633.8231.82N.A.N.A.13.8210.8215.21535.6145.0052.0224.22
100052.3332.1130.11N.A.N.A.11.548.5414.42535.4145.0050.3121.94

Applicable Standard

Physical And Electrical Characteristics (at 20°C)
