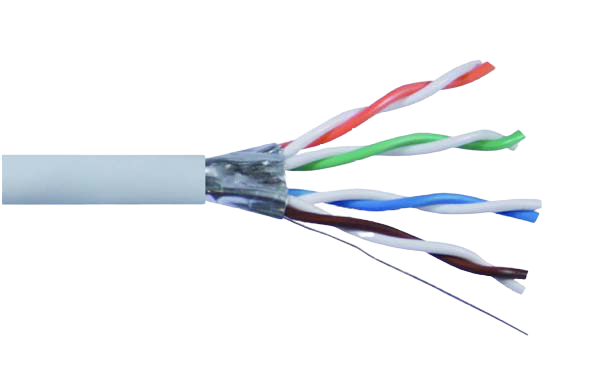

Category 6A 500MHz U/FTP Stranded Cable
Product Feature
- High Performance of transmission.
- High quality of safety property.
- Sweep Frequency upto 500MHz.
Product Description
- U/FTP , 28AWG stranded bare copper, CAT.6A.
- Each pair twist with metal foil screen.
- With drain wire.
Application
- Structure cabling for cross-connect cable.
- Transmission of digital and analogue for data, video and audio application.
- Metal shielded providing good protection from EMI noise.
- 10/100/1G/10G Base – T IEEE 802.3 i/u/ab/an.
- CDDI/FDDI/ATM/ Token Ring.
- IEEE 802.3af(PoE)/IEEE 802.3at(PoE+).
- Limit Power -LP UL POE Safety Standard.
- HDBaseT 2.0 standard.
- EatherCAT Industrial standard.
Description
Cable Data
| TYPE |
PRODUCT NO. |
AWG |
FLAME |
DIAMETER |
PACKAGING |
|
|
|
RETARDANT |
(mm/inch) |
Put-Up |
|
|
|
RATING |
|
|
| Stranded |
TGM2604S |
26AWG |
CM |
6.3+-0.2 mm |
1,000ft |
|
TGL2604S |
26AWG |
LSZH |
6.3+-0.2 mm |
1,000ft |
|
TGM2804S |
28AWG |
CM |
5.1+-0.2 mm |
1,000ft |
|
TGL2804S |
28AWG |
LSZH |
5.1+-0.3 mm |
1,000ft |
Reference and Electrical Characteristics
| Frequency |
IL |
NEXT |
PS.NEXT |
ACR |
PS.ACR |
ACRF |
PS.ACRF |
RL |
Propagation Delay |
Delay Skew |
PS.ANEXT |
PS.AACRF |
| (MHz) |
(Max.) |
(Min.) |
(Min.) |
(Min.) |
(Min.) |
(Min.) |
(Min.) |
(Min.) |
(Max.) |
(Max.) |
(Min.) |
(Min.) |
|
dB/100m |
db/100m |
db/100m |
db/100m |
db/100m |
db/100m |
db/100m |
db/100m |
ns/100m |
ns/100m |
db/100m |
db/100m |
| 100 |
28.70 |
45.30 |
42.30 |
16.60 |
13.60 |
28.00 |
25.00 |
18.99 |
537.60 |
45.00 |
62.50 |
38.20 |
| 250 |
46.60 |
39.33 |
36.33 |
N.A. |
N.A. |
20.04 |
17.04 |
15.60 |
536.28 |
45.00 |
56.53 |
30.24 |
| 500 |
67.89 |
34.82 |
31.82 |
N.A. |
N.A. |
14.02 |
11.02 |
15.60 |
535.61 |
45.00 |
52.02 |
24.22 |
Applicable Standard
- Electrical Transmission
- ANSI/TIA-568-C.2 (2009)
- ISO/IEC 11801(Edition 2.2)
- IEC 61156-6(Edition 3.1)
- Flame Test
- UL 1685 (CM)
- IEC 60332-1(LSZH)
- Material and construction
- UL 444
- CSA 22.2 NO.214
- EU Directive 2011/65/EU (RoHS2)
- EU Directive 2006/95/EC (LVD)
- CE Compliance date 2010.01.01
Physical And Electrical Characteristics (at 20°C)
- Temperature : 75°C
- Spark Test : 2.5 KV DC
- AC leakage current through overall jacket : <= 10mA (1.5KV AC)
- Cable cold bend : -20°C for 4hr
- Conductor DC resistance : <= solid 14.5 Ω/100m
- Resistance Unbalance : <= 4%
- Dielectric strength : 1.5 KV ac for 2 s
- Insulation Resistance : >=5000 MΩ*Km
- Mutual Capacitance : <= 5.6 nF/100m
- Capacitance unbalance pair-to-ground : 160 pF/100m
