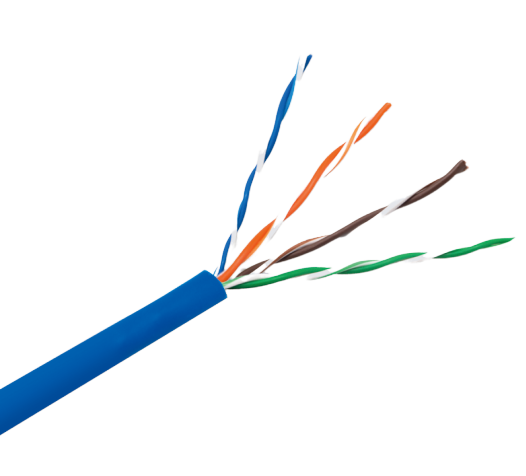

Category 6 550MHz U/UTP Solid Cable CMR
Product Feature
- High performance of transmission.
- High quality of safety property.
- Sweep Frequency up to 550MHz.
- Reelex II carton and easy to pull out.
- Carton with one layer corrugated design providing sufficient strength and saving packaging space.
Product Description
- U/UTP ,23AWG solid bare copper, CAT.6, CMR
- With rip cord.
Application
- Structure cabling for horizontal and building backbone cable.
- Transmission of digital and analogue for data, video and audio applications.
- CDDI / ATM / Token Ring.
- IEEE 802.3ab 1000BASE-T, 1000BASE-TX and legacy speeds.
- CDDI / ATM / Token Ring.
- IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
Description
Cable Data
| TYPE |
PRODUCT NO. |
AWG |
FLAME |
DIAMETER |
PACKAGING |
|
|
|
RETARDANT |
(mm/inch) |
Put-Up |
|
|
|
RATING |
|
|
| Solid |
TUP2304L |
23AWG |
CMP |
5.1+-0.2 mm |
1,000ft |
|
TUP2304U |
23AWG |
CMP |
5.1+-0.2 mm |
1,000ft |
|
TUR2304U |
23AWG |
CMR |
5.4+-0.2 mm |
1,000ft |
|
TUM2304U |
23AWG |
CM |
5.4+-0.2 mm |
1,000ft |
|
TUL2304U |
23AWG |
LSZH |
5.4+-0.2 mm |
1,000ft |
Reference and Electrical Characteristics
| Frequency |
IL |
NEXT |
PS.NEXT |
ACR |
PS.ACR |
ACRF |
PS.ACRF |
RL |
Propagation Delay |
Delay Skew |
| (MHz) |
(Max.) |
(Min.) |
(Min.) |
(Min.) |
(Min.) |
(Min.) |
(Min.) |
(Min.) |
(Max.) |
(Max.) |
|
dB/100m |
db/100m |
db/100m |
db/100m |
db/100m |
db/100m |
db/100m |
db/100m |
ns/100m |
ns/100m |
| 100 |
19.80 |
44.30 |
42.30 |
24.50 |
22.50 |
27.80 |
24.80 |
20.11 |
537.60 |
45.00 |
| 250 |
32.85 |
38.33 |
36.33 |
5.48 |
3.48 |
19.84 |
16.84 |
17.32 |
536.28 |
45.00 |
| 550 |
51.76 |
33.19 |
31.19 |
N.A. |
N.A. |
12.99 |
9.99 |
14.92 |
535.54 |
45.00 |
Applicable Standard
- Electrical Transmission
- ANSI/TIA-568-C.2 (2009)
- ISO/IEC 11801(Edition 2.2)
- IEC 61156-5(Edition 2.1)
- Flame Test
- NFPA 262 (CMP)
- Material and construction
- UL 444
- CSA 22.2 NO.214
- EU Directive 2011/65/EC (RoHS2)
- EU Directive 2006/95/EC (LVD)
- CE compliance date: 2010.01.01
Physical And Electrical Characteristics (at 20°C)
- Temperature : 75°C / 300V
- Spark Test : 2.5 KV DC
- AC leakage current through overall jacket : ≤ 10mA (1.5KV AC)
- Cable cold bend : -20°C for 4 hr
- Conductor DC resistance : ≤ 9.38 Ω/100m
- Resistance Unbalance : ≤ 5%
- Dielectric strength : 1.5 KV ac for 2 s
- Insulation Resistance : ≥ 5000 MΩ•m
- Mutual Capacitance : ≤ 5.6 nF/100m
- Capacitance unbalance pair-to-ground : ≤ 330 pF/100m
