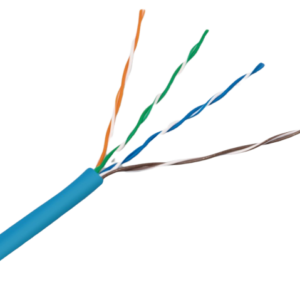

Category 6 550MHz U/UTP Stranded Cable
Product Feature
- High performance of transmission.
- High quality of safety property.
- Sweep frequency up to 550 MHz.
- Reelex II carton and easy to pull out.
- Carton with one layer corrugated design providing sufficient strength and saving packaging space.
Product Description
- U/UTP, 24AWG stranded bare copper, CAT.6, CM
Application
- Structure cabling for patch cable.
- Transmission of digital and analogue for data, video and audio appliacation.
- IEEE 802.3ab 1000BASE-T, 1000BASE-TX and legacy speeds.
- CDDI / ATM / Token Ring
- IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
- EtherCAT Industrial standard.
Description
Cable Data
| TYPE |
PRODUCT NO. |
AWG |
FLAME |
DIAMETER |
PACKAGING |
|
|
|
RETARDANT |
(mm/inch) |
Put-Up |
|
|
|
RATING |
|
|
| Stranded |
TPM2404N70 |
24AWG |
CM |
5.2+-0.2 mm |
1,000ft |
|
TPL2404N70 |
24AWG |
LSZH |
4.4+-0.2 mm |
1,000ft |
|
TPP2604N70 |
26AWG |
CMP |
4.4+-0.2 mm |
1,000ft |
|
TPR2604N70 |
26AWG |
CMR |
4.8+-0.2 mm |
1,000ft |
|
TPM2804N70 |
28AWG |
CM |
4.0+-0.2 mm |
1,000ft |
|
TPL2804N70 |
28AWG |
LSZH |
4.0+-0.2 mm |
1,000ft |
Reference and Electrical Characteracteristics
| Frequency |
IL |
NEXT |
PS.NEXT |
RL |
Propagation Delay |
Delay Skew |
| (MHz) |
(Max.) |
(Min.) |
(Min.) |
(Min.) |
(Max.) |
(Max.) |
|
dB/100m |
db/100m |
db/100m |
db/100m |
ns/100m |
ns/100m |
| 100 |
N.A. |
45.30 |
42.30 |
18.99 |
537.60 |
45.00 |
| 250 |
N.A. |
39.33 |
36.33 |
15.60 |
536.28 |
45.00 |
| 400 |
N.A. |
38.27 |
36.27 |
13.81 |
535.80 |
45.00 |
| 550 |
N.A. |
36.19 |
34.19 |
12.62 |
535.54 |
45.00 |
Applicable Standard
- Electrical Transmission
- ANSI/TIA-568.2-D (2018)
- ISO/IEC 11801-1(Edition 2.2)
- IEC 61156-6 (Edition 2.0)
- Flame Test
- UL 1685 (CM)
- Material and construction
- UL 444
- CSA 22.2 NO.214
- EU Directive 2011/65/EU (RoHS2)
- EU Directive 2006/95/EC (LVD)
- CE Compliance date 2010.01.01
Physical And Electrical Characteristics (at 20°C)
- Temperature & voltage rating : 75°C / 300V
- Spark Test : 2.5 KV DC
- AC leakage current through overall jacket : ≤ 10mA (1.5KV AC)
- Cable cold bend : -20°C for 4 hr
- Conductor DC resistance : ≤ 14 Ω/100m
- Resistance Unbalance : ≤ 5%
- Dielectric strength : 1.5 KV ac for 2 s
- Insulation Resistance : ≥ 5000 MΩ•m
- Mutual Capacitance : ≤ 5.6 nF/100m
- Capacitance unbalance pair-to-ground : ≤ 160 pF/100m
