UL / CSA SJT Power Cable
Applications:
Unshielded: for portable hand tools, washing machines,polishers,sanders, vibrators, shop lights,therapeutic machines, dish washers, medical equipment, and office machines.
Shielded: for power supply cord of computers to

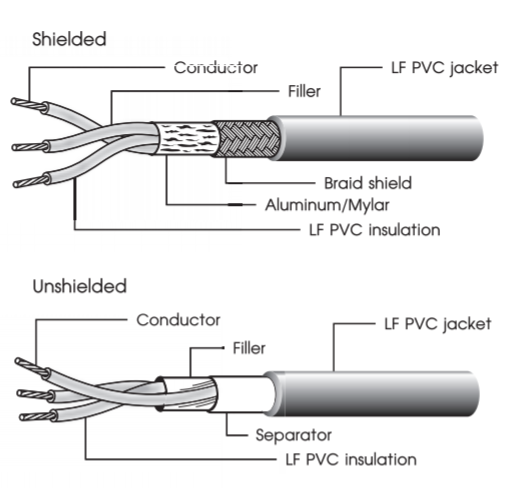

Product Description
Unshielded: Bare stranded copper conductor, 18-10 AWG
Color-coded PVC insulation. (Lead Free)
Cores twisted together with fillers.
Separator overcore.
PVC jacketed water- resistant type. (Lead Free)
Rated temperature: 60°C, 150°C, Rated voltage: 300V
Pass VW-1 flame test.
Shielded: Bare stranded copper conductor, 18-10 AWG
Color-coded PVC insulation. (Lead Free)
Cores twisted together with filler.
Mylar appliovertwisted cores.
Aluminium mylar.
Bare copper braid shield, 85% coverage.
Rated temperature: 60°C, and 105°C.
Rated voltage: 300 V
Pass VW-1 flame test.
PVC jacket (Lead Free)
Construction
Description
UL Style
&
CSA Type
Conductor
Insulation Thickness
Braid Shield
Jacket Thickness
Overall Diameter (Approx.)
Standard Put-up
AWG
No./mm
mm
No./mm
mm
mm
ft/coil
M/coil
SJT
18*2C
41/0160
0.76
–
0.76
7.30
1000
305
16*2C
26/0.253
–
8.10
1000
305
14*2C
41/0.253
–
8.80
1000
305
SJT (Shielded)
18*3C
41/0.160
24/7/0.127
8.60
1000
305
16*3C
26/0.253
24/7/0.127
9.30
1000
305
14*3C
41/0.253
24/7/0.160
10.30
1000
305
