UL 3386 Hook-up Wire 105°C 600V
Applications:
- For internal wiring of appliances.
Product Description
- Solid or stranded, tinned or bare copper conductor or OS-1, 30-4 AWG
- Rated temperature 105°C Rated Voltage: 600V
- Uniform thickness of wire to ensure easy stripping and cutting.
- Resistant to acids, oils, alkalines, moisture and fungus
- Pass UL VW-1 flame test
- OS-1 is available
- Insulation: XLPE / HF

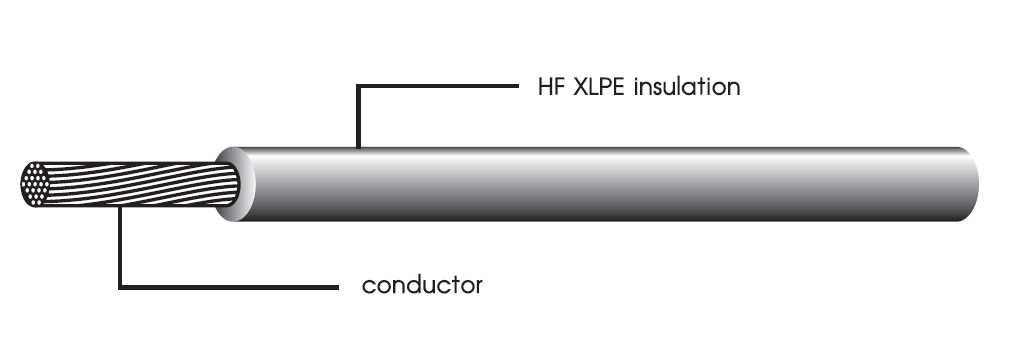

Construction
Description
Halogen Free Style : UL3386
| UL Style |
Conductor |
Insulation
Thickness |
Overall
Diameter
(Approx) |
Standard Put-Up |
Conductor
Resistance at 20°C |
| AWG |
No./mm |
mm |
mm |
ft/coil |
M/coil |
Ohm/Km |
| UL 3386
(Stranded) |
30 |
7/0.102 |
0.76 |
1.80 |
2000 |
610 |
381.00 |
| 28 |
7/0.127 |
1.90 |
2000 |
610 |
239.00 |
| 26 |
7/0.160 |
2.05 |
2000 |
610 |
150.00 |
| 24 |
11/0.160 |
2.20 |
2000 |
610 |
94.20 |
| 22 |
17/0.160 |
2.40 |
2000 |
610 |
59.40 |
| 20 |
21/0.180 |
2.55 |
2000 |
610 |
36.70 |
| 18 |
34/0.180 |
2.80 |
2000 |
610 |
23.20 |
| 16 |
26/0.253 |
3.10 |
2000 |
610 |
14.60 |
| 14 |
41/0.253 |
3.50 |
1000 |
305 |
8.96 |
| 12 |
65/0.253 |
3.90 |
1000 |
305 |
5.64 |
| 10 |
105/0.253 |
5.10 |
1000 |
305 |
3.54 |
| 8 |
165/0.253 |
1.25 |
7.40 |
305 |
100 |
2.23 |
| 6 |
266/0.253 |
1.55 |
8.90 |
305 |
100 |
1.40 |
| 4 |
420/0.253 |
10.50 |
305 |
100 |
0.88 |
| UL 3386
(Solid) |
22 |
7/0.254 |
0.76 |
2.38 |
2000 |
610 |
59.40 |
| 20 |
7/0.320 |
2.55 |
2000 |
610 |
36.70 |
| 18 |
7/0.404 |
2.80 |
2000 |
610 |
23.20 |
| UL 3386
(OS-1) |
26 |
1/0.404 |
2.00 |
2000 |
610 |
143.00 |
| 24 |
1/0.511 |
2.10 |
2000 |
610 |
89.30 |
| 22 |
1/0.643 |
2.25 |
2000 |
610 |
56.40 |
| 20 |
1/0.320 |
2.40 |
2000 |
610 |
35.20 |
| 18 |
1/0.813 |
2.65 |
2000 |
610 |
22.20 |
| 16 |
1/1.024 |
2.90 |
2000 |
610 |
14.00 |
| 14 |
1/1.290 |
3.25 |
2000 |
610 |
8.78 |
| 12 |
1/2.025 |
3.65 |
1000 |
305 |
5.53 |
| 10 |
1/2.588 |
4.20 |
1000 |
305 |
3.47 |
