UL 3302 Hook-up Wire 105°C 30 V
Applications:
- For use in Internal wiring of electrical and electronic equipment.
- High temperature resistance wire.
Product Description
- Solid, OS-1 or Stranded, Tinned or bare Copper Conductor 32-16 AWG.
- Rated temperature: 150°C, Rated voltage: 30 V
- Halogen free XLPE insulation as RoHS complied wire and stable thermally.
- Small outer diameter saves space.
- Pass UL VW-1 flame test.

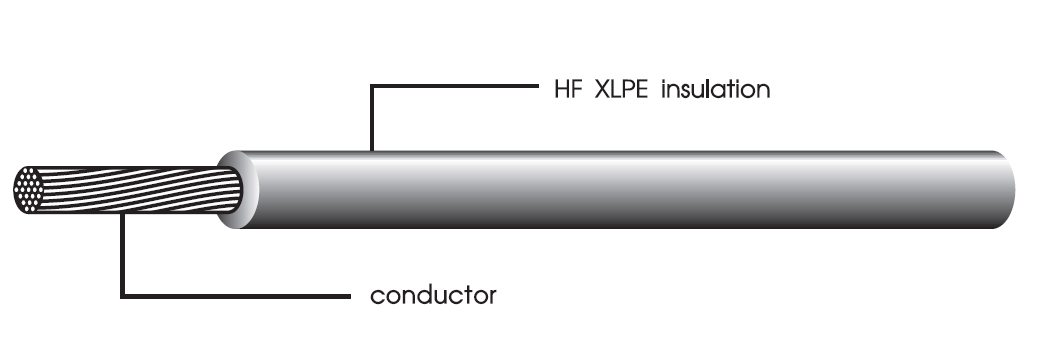

Construction
Description
Halogen Free Style: UL 3302
| UL Style |
Conductor |
Insulation Thickness |
Overall DIameter(Approx) |
Standard Put-Up |
Conductor
Resistance at 20°C |
| AWG |
No./mm |
mm |
mm |
ft/coll |
M/coll |
Ohm/Km |
| UL 3302
(Standard) |
32 |
7/0.080 |
0.15 |
0.54 |
11500 |
3500 |
563.00 |
| 30 |
7/0.102 |
0.61 |
11500 |
3500 |
381.00 |
| 28 |
7/0.127 |
0.68 |
11500 |
3500 |
239.00 |
| 26 |
0/0.160 |
0.78 |
10000 |
3500 |
150.00 |
| 24 |
11/0.160 |
0.91 |
2000 |
610 |
94.20 |
| 22 |
17/0.160 |
1.06 |
2000 |
610 |
59.40 |
| 20 |
21/0.180 |
0.20 |
1.35 |
2000 |
610 |
36.70 |
| 18 |
34/0.180 |
0.25 |
1.71 |
2000 |
610 |
23.20 |
| 16 |
26/0.253 |
1.99 |
2000 |
610 |
14.60 |
| UL 3302
(OS-1) |
26 |
7/0.160 |
0.15 |
0.78 |
2000 |
610 |
150.00 |
| 24 |
7/0.203 |
0.91 |
2000 |
610 |
94.20 |
| 22 |
7/0.253 |
1.06 |
2000 |
610 |
59.40 |
| 20 |
7/0.320 |
0.20 |
1.36 |
2000 |
610 |
36.70 |
| 18 |
7/0.404 |
0.25 |
1.71 |
2000 |
610 |
23.20 |
| 16 |
7/0.488 |
1.96 |
2000 |
610 |
14.60 |
| UL 3302
(Solid) |
26 |
1/0.404 |
.015 |
0.70 |
2000 |
610 |
143.00 |
| 24 |
1/0.511 |
0.81 |
2000 |
610 |
89.30 |
| 22 |
1/0.643 |
0.94 |
2000 |
610 |
56.40 |
| 20 |
1/0.813 |
0.20 |
1.21 |
2000 |
610 |
35.20 |
| 18 |
1/1.024 |
0.25 |
1.52 |
2000 |
610 |
22.20 |
| 16 |
1/1.290 |
1.79 |
2000 |
610 |
14.00 |
