Description

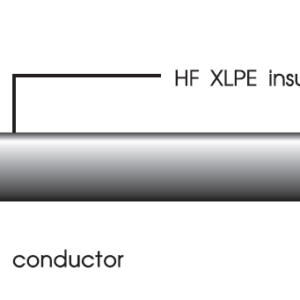

AL-Mylar Foil & Braid Shield Type
Halogen Free style: UL21143
| UL Style & CUL Type |
Conductor | No. OF Core |
Insulation Thickness |
Braid Shield |
Jacket Thickness |
Overall Diameter (Approx) |
Standard Put-Up | ||
|---|---|---|---|---|---|---|---|---|---|
| AWG | No./mm | mm | No./mm | mm | mm | ft/coil | M/coil | ||
| UL 2464 CUL I / IIA (AWM) |
28 | 7/0.127 | 3 | 0.25 | 16/5/0.127 | 0.80 | 4.30 | 1000 | 305 |
| 4 | 16/5/0.127 | 0.80 | 4.60 | 1000 | 305 | ||||
| 5 | 16/6/0.127 | 0.80 | 4.80 | 1000 | 305 | ||||
| 6 | 16/6/0.127 | 0.80 | 5.20 | 1000 | 305 | ||||
| 7 | 16/6/0.127 | 0.80 | 5.20 | 1000 | 305 | ||||
| 8 | 16/6/0.127 | 0.80 | 5.40 | 1000 | 305 | ||||
| 9 | 16/6/0.127 | 0.80 | 5.70 | 1000 | 305 | ||||
| 10 | 16/8/0.127 | 0.85 | 5.80 | 1000 | 305 | ||||
| 15 | 16/8/0.127 | 0.85 | 6.40 | 1000 | 305 | ||||
| 25 | 24/8/0.127 | 1.00 | 8.10 | 500 | 152 | ||||
| 37 | 24/8/0.127 | 1.00 | 8.90 | 500 | 152 | ||||
| 50 | 24/8/0.127 | 1.00 | 10.10 | 500 | 152 | ||||
| UL 2464 CUL I / IIA (AWM) |
26 | 7/0.160 | 3 | 0.25 | 16/5/0.127 | 0.80 | 4.50 | 1000 | 305 |
| 4 | 16/5/0.127 | 0.80 | 4.80 | 1000 | 305 | ||||
| 5 | 16/6/0.127 | 0.80 | 5.10 | 1000 | 305 | ||||
| 6 | 16/6/0.127 | 0.80 | 5.40 | 1000 | 305 | ||||
| 7 | 16/6/0.127 | 0.80 | 5.40 | 1000 | 305 | ||||
| 8 | 16/6/0.127 | 0.80 | 5.70 | 1000 | 305 | ||||
| 9 | 16/8/0.127 | 0.80 | 6.00 | 1000 | 305 | ||||
| 10 | 16/8/0.127 | 0.80 | 6.30 | 1000 | 305 | ||||
| 15 | 16/8/0.127 | 0.85 | 7.00 | 1000 | 305 | ||||
| 25 | 24/6/0.127 | 1.00 | 8.60 | 500 | 152 | ||||
| 37 | 24/7/0.127 | 1.00 | 9.70 | 500 | 152 | ||||
| 50 | 24/8/0.127 | 1.00 | 11.00 | 500 | 152 | ||||
| UL 2464 CUL I / IIA (AWM) |
24 | 7/0.203 | 3 | 0.25 | 16/5/0.127 | 0.80 | 4.70 | 1000 | 305 |
| 4 | 16/5/0.127 | 0.80 | 5.10 | 1000 | 305 | ||||
| 5 | 16/6/0.127 | 0.80 | 5.60 | 1000 | 305 | ||||
| 6 | 16/6/0.127 | 0.80 | 5.70 | 1000 | 305 | ||||
| 7 | 16/8/0.127 | 0.80 | 5.70 | 1000 | 305 | ||||
| 8 | 16/8/0.127 | 0.80 | 6.20 | 1000 | 305 | ||||
| 9 | 16/8/0.127 | 0.85 | 6.40 | 1000 | 305 | ||||
| 10 | 16/8/0.127 | 0.85 | 6.70 | 1000 | 305 | ||||
| 15 | 24/8/0.127 | 0.85 | 7.40 | 1000 | 305 | ||||
| 25 | 24/8/0.127 | 1.00 | 9.10 | 500 | 152 | ||||
| 37 | 24/8/0.127 | 1.00 | 10.30 | 500 | 152 | ||||
| 50 | 24/10/0.127 | 1.00 | 11.90 | 500 | 152 | ||||
| UL 2464 CUL I / IIA (AWM) |
22 | 7/0.253 | 3 | 0.25 | 16/6/0.127 | 0.80 | 5.30 | 1000 | 305 |
| 4 | 16/6/0.127 | 0.80 | 5.60 | 1000 | 305 | ||||
| 5 | 16/6/0.127 | 0.80 | 6.10 | 1000 | 305 | ||||
| 6 | 16/8/0.127 | 0.80 | 6.30 | 1000 | 305 | ||||
| 7 | 16/8/0.127 | 0.80 | 6.30 | 1000 | 305 | ||||
| 8 | 16/8/0.127 | 0.85 | 6.90 | 1000 | 305 | ||||
| 9 | 24/8/0.127 | 0.85 | 7.30 | 1000 | 305 | ||||
| 10 | 24/8/0.127 | 0.85 | 7.40 | 1000 | 305 | ||||
| 15 | 24/8/0.127 | 0.85 | 8.30 | 1000 | 305 | ||||
| 25 | 24/8/0.127 | 1.00 | 10.60 | 500 | 152 | ||||
| 37 | 24/10/0.127 | 1.00 | 11.90 | 500 | 152 | ||||
| 50 | 24/10/0.127 | 1.00 | 13.50 | 500 | 152 | ||||
| UL 2464 CUL I / IIA (AWM) |
18 | 34/0.180 | 2 | 0.38 | 16/8/0.127 | 0.80 | 6.30 | 1000 | 305 |
| 3 | 16/8/0.127 | 0.80 | 6.60 | 1000 | 305 | ||||
| 4 | 24/8/0.127 | 0.85 | 7.60 | 1000 | 305 | ||||
| 5 | 24/8/0.127 | 0.85 | 7.90 | 500 | 152 | ||||
