UL 20288 / CSA SPT , NISPT
Applications:
- SPT-1 SPT-2;, NISPT-1, NISPT-2 For use in household clocks, fans, radios and similar appliances.
- SPT-3: For heavy-duty use in damp location: especially suitable for refrigerators and room-size air conditioners.
- UL 20288: For use in chain link of chain suspended lighting fixtures.

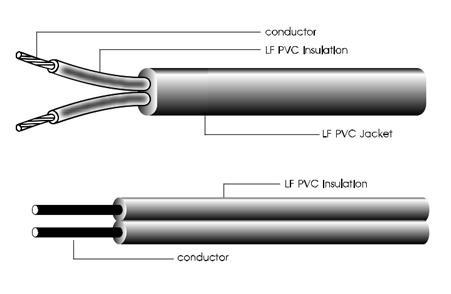

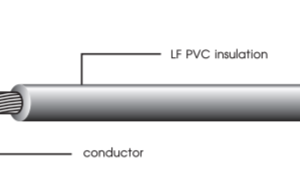

Product Description
- Bare stranded copper conductor.
- Color-coded PVC Insulation (Lead Free)
- Rated temperature: 60°C or 105°C. Rated voltage: 300 v
- Pass UL VW-1 & CSA flame test.
Construction
Description
| UL STYLE
&
CSA TYPE |
Conductor |
No. OF Core |
Insulation Thickness
mm |
Overall Diameter
mm |
Standard Put-up |
| AWG |
No./mm |
ft/coil |
M/coil |
| SPT-1 |
18 |
41/0.160 |
2 |
0.76 |
2.70*5.40 |
1000 |
305 |
| 18 |
41/0.160 |
3 |
2.70*8.00 |
1000 |
305 |
| SPT-2 |
18 |
41/0.160 |
2 |
1.14 |
3.50*7.00 |
1000 |
305 |
| 16 |
65/0.160 |
2 |
3.70*7.20 |
1000 |
305 |
| 18 |
41/0.160 |
3 |
3.50*8.60 |
1000 |
305 |
| 16 |
65/0.160 |
3 |
3.80*9.60 |
1000 |
305 |
| SPT-3 |
18 |
41/0.160 |
2 |
1.52 |
4.40*8.70 |
1000 |
305 |
| 16 |
65/0.160 |
2 |
1.52 |
4.6*9.10 |
1000 |
305 |
| 14 |
41/0.253 |
2 |
2.03 |
6.00*10.80 |
500 |
152 |
| 12 |
65/0.253 |
2 |
2.41 |
7.40*14.00 |
500 |
152 |
| 10 |
105/0.253 |
2 |
2.79 |
9.10*18.20 |
500 |
152 |
| 18 |
41/0.160 |
3 |
1.52 |
4.40*10.70 |
1000 |
305 |
| 16 |
65/0.160 |
3 |
1.52 |
4.75*11.80 |
500 |
152 |
| 14 |
41/0.253 |
3 |
2.03 |
6.00*14.50 |
500 |
152 |
| 12 |
65/0.253 |
3 |
2.41 |
7.00*15.40 |
500 |
152 |
| 10 |
105/0.253 |
3 |
2.79 |
9.10*18.80 |
500 |
152 |
| UL 20288 |
18 |
41/0.160 |
2 |
1.02 |
3.25*5.80 |
1000 |
305 |
| NISPT-1 |
18 |
41/0.160 |
2 |
INSU |
JKT THICK |
Thick Bet. Cond. |
Overall Dia
(Approx) |
|
| 0.38 |
0.55 |
0.38 |
3.10*5.60 |
305 |
| NISPT-2 |
18 |
41/0.160 |
2 |
0.76 |
0.55 |
0.51 |
3.90*7.30 |
305 |
| 16 |
65/0.160 |
2 |
0.76 |
0.55 |
0.51 |
4.20*7.80 |
305 |
