UL 1571 Hook-up Wire 80°C 30V

UL 1571 Hook-up Wire 80°C 30V

Applications:

Product Description

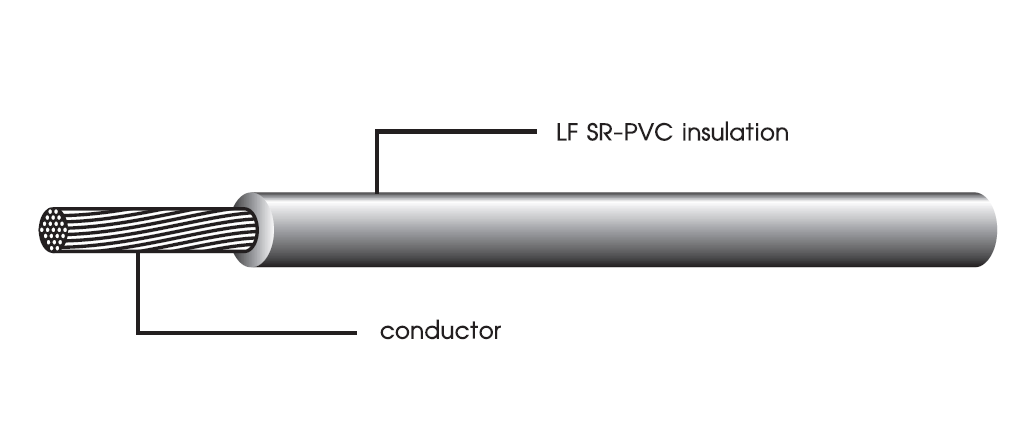

Construction

Category:

Description

UL Style Conductor Insulation Thickness Overall Diameter (Approx) Standard Put-Up Conductor Resistance at 20°C
AWG No./mm mm mm ft/coil M/coil Ohm/Km
UL 1571 (Stranded) 30 7/0.101 0.25 0.80 11480 3500 381.00
28 7/0.102 0.90 11480 3500 239.00
26 7/0.160 1.00 11480 3500 150.00
24 7/0.203 1.10 2000 610 94.20
22 7/0.253 1.30 2000 610 59.40
20 7/0.320 1.50 2000 610 36.70
18 7/0.404 1.70 2000 610 23.20
