UL 10368 Hook-up Wire 105°C 300V
Applications:
- Internal wiring of computer, office equipment and other electronic & electrical equipment.
Product Description
- (Solid or Stranded) tinned copper conductor or OS-1, 30-16 AWG.
- Rated temperature 105°C Rated Voltage: 300V
- Uniform thickness of wire to ensure easy stripping and cutting.
- Pass UL VW-1 & CUL FT1 flame test. OS-1 is available.
- Insulation: XLPE / HF UL10368
- Halogen free XLPE insulation as RoHS complied wire and stable thermally.

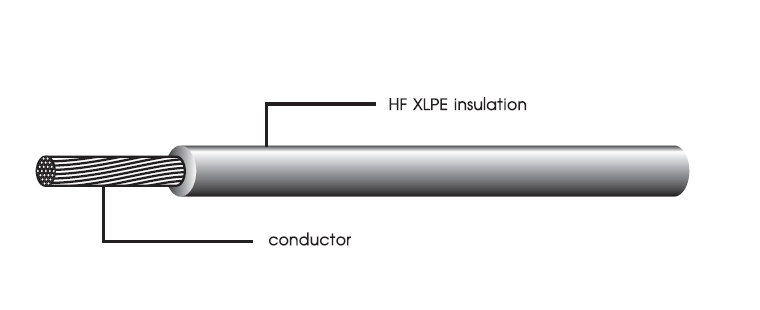

Construction
Description
Halogen Free Style:UL10368
| UL Style |
Conductor |
Insulation
Thickness |
Overall
Diameter
(Approx) |
Standard Put-Up |
Conductor
Resistance at 20 C |
| AWG |
No./mm |
mm |
mm |
ft/coil |
M/coil |
Ohm/Km |
| UL 10368
(Stranded) |
30 |
7/0.102 |
0.25 |
0.80 |
11480 |
3500 |
381.00 |
| 28 |
7/0.127 |
0.90 |
11480 |
3500 |
239.00 |
| 26 |
7/0.160 |
1.00 |
11480 |
3500 |
150.00 |
| 24 |
7/0.203 |
1.10 |
2000 |
610 |
94.20 |
| 22 |
7/0.253 |
1.30 |
2000 |
610 |
59.40 |
| 20 |
7/0.320 |
1.50 |
2000 |
610 |
36.70 |
| 18 |
7/0.404 |
1.70 |
2000 |
610 |
23.20 |
| 16 |
26/0.253 |
2.00 |
2000 |
610 |
14.60 |
| UL 10368
(Solid) |
30 |
7/0.253 |
0.76 |
11480 |
3500 |
361.00 |
| 28 |
7/0.320 |
0.83 |
11480 |
3500 |
227.00 |
| 26 |
7/0.404 |
0.90 |
11480 |
3500 |
143.00 |
| 24 |
7/0.511 |
1.02 |
2000 |
610 |
89.30 |
| 22 |
7/0.643 |
1.15 |
2000 |
610 |
56.40 |
| 20 |
7/0.813 |
1.32 |
2000 |
610 |
35.20 |
| 18 |
1/1.024 |
1.52 |
2000 |
610 |
22.20 |
| 16 |
1/1.290 |
1.80 |
2000 |
610 |
15.00 |
| UL 10368
(OS-1) |
26 |
7/0.160 |
1.00 |
4000 |
1220 |
150.00 |
| 24 |
7/0.203 |
1.10 |
2000 |
610 |
94.20 |
| 22 |
7/0.253 |
1.30 |
2000 |
610 |
59.40 |
| 20 |
7/0.320 |
1.50 |
2000 |
610 |
36.70 |
| 18 |
7/0.404 |
1.80 |
2000 |
610 |
23.20 |
