Applications:
- For internal wiring of appliances
Product Description
- Solid or Stranded, tinned or bare copper conductor or OS-1, 30-2 AWG
- Rated temperature 105°C Rated voltage 600 V
- Uniform thickness of wire to ensure easy stripping and cutting.
- Resistant to acids, oils, alkalines, moisture and fungus
- Pass UL VW-1& CUL FT1 flame test
- OS-1 is available
- Insulation : PVC / LF

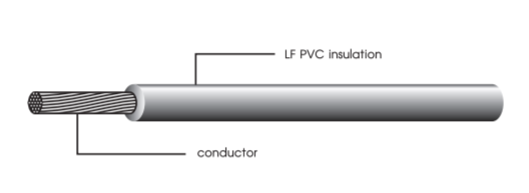

Construction
Description
| Style & CUL Type | Conductor | Insulation | Overall Diameter (Approx) |
Standard Put-Up | Conductor Resistance at 20°C |
||
|---|---|---|---|---|---|---|---|
| AWG | No./mm | mm | mm | ft/coil | M/coil | ohm/km | |
| UL 1015 CUL (TEW) (Stranded) |
30 | 7/0.102 | 0.76 | 1.85 | 2000 | 610 | 381.00 |
| 28 | 7/0.127 | 1.90 | 2000 | 610 | 239.00 | ||
| 26 | 7/0.160 | 2.05 | 2000 | 610 | 150.00 | ||
| 24 | 11/0.160 | 2.20 | 2000 | 610 | 94.20 | ||
| 22 | 17/0.160 | 2.40 | 2000 | 610 | 59.40 | ||
| 20 | 21/0.180 | 2.55 | 2000 | 610 | 36.70 | ||
| 18 | 34/0.180 | 2.80 | 2000 | 610 | 23.20 | ||
| 16 | 26/0.253 | 3.10 | 2000 | 610 | 14.60 | ||
| 14 | 41/0.253 | 3.50 | 1000 | 305 | 8.96 | ||
| 12 | 65/0.253 | 3.90 | 1000 | 305 | 5.64 | ||
| 10 | 105/0.253 | 5.10 | 1000 | 305 | 3.54 | ||
| 8 | 165/0.253 | 1.25 | 7.40 | 305 | 100 | 2.23 | |
| 6 | 266/0.253 | 1.55 | 8.90 | 305 | 100 | 1.40 | |
| 4 | 420/0.253 | 10.50 | 305 | 100 | 0.88 | ||
| UL 1015 CUL (TEW) (OS-1) | 22 | 7/0.254 | 0.76 | 2.38 | 2000 | 610 | 59.40 |
| 20 | 7/0.320 | 2.55 | 2000 | 610 | 36.70 | ||
| 18 | 7/0.404 | 2.80 | 2000 | 610 | 23.20 | ||
| UL 1015 CUL (TEW) (Solid) | 26 | 1/0.404 | 2.00 | 2000 | 610 | 143.00 | |
| 24 | 1/0.511 | 2.10 | 2000 | 610 | 89.30 | ||
| 22 | 1/0.643 | 2.25 | 2000 | 610 | 56.40 | ||
| 20 | 1/0.813 | 2.40 | 2000 | 610 | 35.20 | ||
| 18 | 1/1.024 | 2.65 | 2000 | 610 | 22.20 | ||
| 16 | 1/1.290 | 2.90 | 2000 | 610 | 14.00 | ||
| 14 | 1/1.630 | 3.25 | 2000 | 610 | 8.78 | ||
| 12 | 1/2.050 | 3.65 | 1000 | 305 | 5.53 | ||
| 10 | 1/2.588 | 4.20 | 1000 | 305 | 3.47 | ||
