UL 1007, 1569 Hook-up Wire 80°C, 105°C 300V
Applications:
- For general purpose internal wiring of electronic and electrical equipment.
Product Description
- Tinned, (stranded or solid) Copper conductor, or OS-1, 30-16 AWG
- Rating:
- Ul 1007 80°C 300V
- Ul 1569 105°C 300V
- Pass Ul VW-1 & CUL FTI flame test. OS-1 is available
- Uniform thickness of wire to ensure easy stripping and cutting.
- Resistant to acids, oils, alkalines, moisture and fungus.

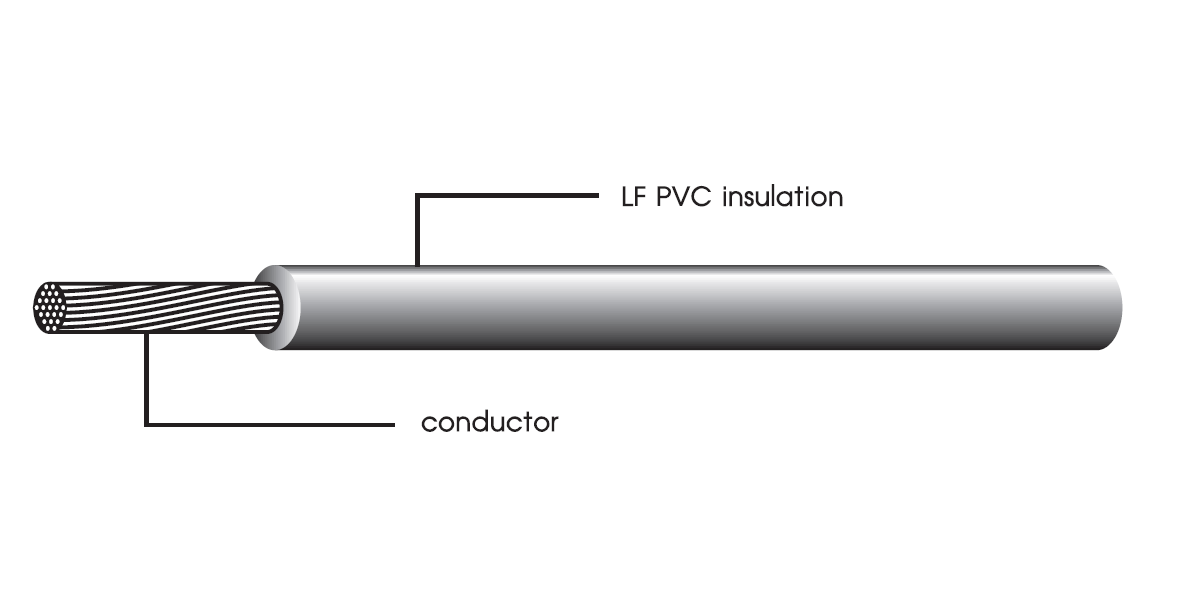

- Insulation :PVC / LF
Construction
Description
| UL Style & CUL Type |
Conductor |
Insulation Thickness |
Overall Diameter |
Standard Put-Up |
Conductor
Resistance at 20°C |
| AWG |
No./mm |
mm |
mm |
ft/coil |
M/coil |
ohm/km |
| UL 1569
UL 1007
CUL TR-64
(Stranded) |
30 |
7/0.102 |
0.38 |
1.10 |
11500 |
3500 |
381.00 |
| 28 |
7/0.127 |
1.20 |
11500 |
3500 |
239.00 |
| 26 |
7/0.160 |
1.30 |
10000 |
3050 |
150.00 |
| 24 |
11/0.160 |
1.40 |
2000 |
610 |
94.20 |
| 22 |
17/0.160 |
1.60 |
2000 |
610 |
59.40 |
| 20 |
21/0.180 |
1.80 |
2000 |
610 |
36.70 |
| 18 |
34/0.180 |
2.10 |
2000 |
610 |
23.20 |
| 16 |
26/0.253 |
2.40 |
2000 |
610 |
14.60 |
| UL 1569
UL 1007
CUL TR-64
(OS-1) |
26 |
7/0.160 |
1.30 |
2000 |
610 |
150.00 |
| 24 |
7/0.203 |
1.45 |
2000 |
610 |
94.20 |
| 22 |
7/0.253 |
1.60 |
2000 |
610 |
59.40 |
| 20 |
7/0.320 |
1.80 |
2000 |
610 |
36.70 |
| 18 |
7/0.404 |
2.10 |
2000 |
610 |
23.20 |
| 16 |
7/0.488 |
2.30 |
2000 |
610 |
14.60 |
| UL 1569
UL 1007
CUL TR-64
(Solid) |
26 |
1/0.404 |
1.25 |
2000 |
610 |
143.00 |
| 24 |
1/0.511 |
1.35 |
2000 |
610 |
89.30 |
| 22 |
1/0.643 |
1.50 |
2000 |
610 |
56.40 |
| 20 |
1/0.813 |
1.65 |
2000 |
610 |
35.20 |
| 18 |
1/1.024 |
1.85 |
2000 |
610 |
22.20 |
| 16 |
1/1.290 |
2.15 |
2000 |
610 |
14.00 |
