FLRY-A, FLR2Y-A, FLRX(21X)-A, FLR11Y-A, FLR91X-A
Applications:
- For use in internal wiring of automobile and electronic equipment.
- The dimension, and requirements for single-core cables is based upon and refers to ISO 6722-2 and GMW15626
- 60V cables intended for use in road vehicle applications where the nominal system voltage is <60 Vdc or 25 Vac
Product Description

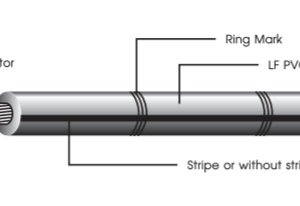

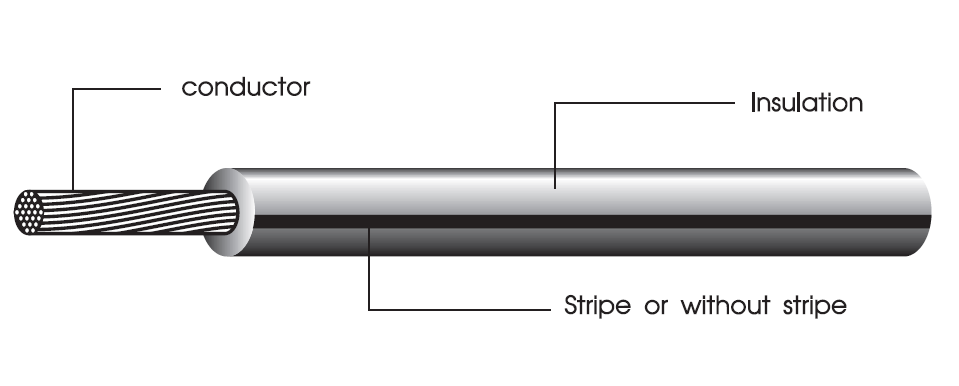

- Stranded bare copper conductor 0.13 ~ 16 SQMM
- Colour code insulation with or without stripe
- RoHS complied wire.
Construction
Description
ISO / TS 16949 : 2009 – GMW15626 (Thin Wall style)
| Style |
Conductor |
Nom.
Insulation
Thickness |
Overall
Diameter(mm) |
Standad
Put-Up |
Conductor
Resistance at 20°C |
| Size(mm2) |
No/mm(Max) |
mm |
Min |
Max |
Meter |
ohm/km |
| FLRY-A
FLR2Y-A
FLR2X(21X)-A
FLR11Y-A
FLR91X-A |
0.13 |
7/0.16 |
0.25 |
0.95 |
1.05 |
3000 |
136.00 |
| 0.22 |
7/0.21 |
0.25 |
1.10 |
1.20 |
500 |
84.80 |
| 0.35 |
7/0.27 |
0.25 |
1.20 |
1.30 |
500 |
54.40 |
| 0.50 |
19/0.19 |
0.28 |
1.40 |
1.60 |
500 |
37.10 |
| 0.75 |
19/0.24 |
0.30 |
1.70 |
1.90 |
500 |
24.70 |
| 1.00 |
19/0.27 |
0.30 |
1.90 |
2.10 |
500 |
18.50 |
| 1.25 |
19/0.3 |
0.30 |
2.10 |
2.30 |
500 |
14.90 |
| 1.50 |
19/0.33 |
0.30 |
2.20 |
2.40 |
500 |
12.70 |
| 2.00 |
19/0.38 |
0.35 |
2.50 |
2.80 |
500 |
9.42 |
| 2.50 |
37/0.28 |
0.35 |
2.70 |
3.00 |
500 |
7.60 |
| 3.00 |
37/0.34 |
0.40 |
3.10 |
3.40 |
500 |
6.15 |
| 4.00 |
37/0.38 |
0.40 |
3.40 |
3.70 |
500 |
4.71 |
| 5.00 |
37/0.43 |
0.40 |
3.90 |
4.20 |
200 |
3.94 |
| 6.00 |
37/0.45 |
0.40 |
4.00 |
4.30 |
200 |
3.14 |
| 8.00 |
50/0.46 |
0.40 |
4.60 |
5.00 |
200 |
2.38 |
| 10.00 |
63/0.46 |
0.60 |
5.30 |
6.00 |
200 |
1.82 |
| 12.00 |
154/0.33 |
0.60 |
5.80 |
6.50 |
200 |
1.52 |
| 16.00 |
105/0.46 |
0.65 |
6.40 |
7.20 |
200 |
1.16 |
