AUTOMOBILE WIRE TYPE AV, AVF
Applications:
- Wires used in low voltage circuits in automobiles (vehicles and motorcycles).
- General purpose wires for automobiles; they are used in low voltage circuits such as starting, charging, lighting, signal and instrument panel circuits, Standard: JIS C 3406 60°C
Product Description
- Stranded Copper conductor 0.5-8.0 SQMM

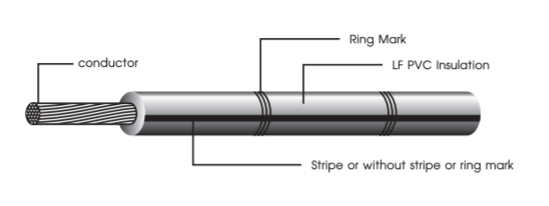

- Color code lead free PVC insulation with or without stripe or ring mark
Construction
Description
ISO/TS 16949 : 2009
| Nominal size
*1 |
Conductor (Annealed copper stranded conductors) |
Insulation |
Overall
diameter |
Conductor
resistance
(20°C)
Ω/Km |
Current
limit
(A) |
Approx. weight
(Kg/Km) |
Standard
Put-Up
(M/coil) |
| Construction
(No./mm) |
Calculated area
(mm^2) |
Outer diameter
(mm) |
Thickness
(mm) |
Standard
(mm) |
Max
(mm) |
|
*2 |
|
*3 |
| AV |
| 0.5 |
7/0.32 |
0.56 |
1.00 |
0.60 |
2.30 |
2.40 |
32.70 |
13 |
5.36 |
500 |
| 0.85 |
11/0.32 |
0.88 |
1.20 |
0.60 |
2.50 |
2.60 |
20.80 |
18 |
7.19 |
500 |
| 1.25 |
16/0.32 |
1.28 |
1.50 |
0.60 |
2.80 |
2.90 |
14.30 |
24 |
9.71 |
500 |
| 2.0 |
26/0.32 |
2.09 |
1.90 |
0.60 |
3.25 |
3.40 |
8.81 |
33 |
14.48 |
500 |
| 3.0 |
41/0.32 |
3.29 |
2.40 |
0.70 |
3.95 |
4.10 |
5.99 |
45 |
22.20 |
500 |
| 5.0 |
65/0.32 |
5.22 |
3.00 |
0.80 |
4.75 |
4.90 |
3.52 |
58 |
33.91 |
500 |
| 8.0 |
50/0.45 |
7.95 |
3.70 |
0.90 |
5.65 |
5.80 |
2.32 |
75 |
50.15 |
500 |
| AVF |
| 0.5f |
20/0.18 |
0.50 |
0.90 |
0.60 |
2.30 |
2.40 |
3.27 |
13 |
5.15 |
500 |
| 0.75f |
30/0.18 |
0.76 |
1.10 |
0.60 |
2.50 |
2.60 |
2.24 |
15 |
6.71 |
500 |
| 1.25f |
50/0.18 |
1.27 |
1.50 |
0.60 |
2.80 |
2.90 |
1.47 |
24 |
9.65 |
500 |
- *1 The “f” in the nominal size column indicates a flexible conductor with a finer wire diameter.
- *2 The Current limit data is for conductor temperature of 80°C (maximum allowable temperature) and an ambient temperature of 40°C
- *3 Standard packing shapes shall be coils. However, the products which length are indicated in () shall be wound on drums
